NIR probes sit on granulators. Raman sensors monitor bioreactors. Historians log thousands of data points per shift. And in the next deviation meeting, your QA team is reconstructing what happened to a failed batch manually, across three disconnected systems, three days after the fact.
This is where most PAT implementations actually land. Not because the sensors fail, but because the data they generate never connects to a decision in a way that is traceable, governed, or actionable.
The FDA’s 2004 PAT guidance had a precise intention: shift pharmaceutical manufacturing from end-product testing to real-time process understanding. Two decades on, the instruments exist. What is missing — in most facilities — is the validated software infrastructure that turns measurement into control.
For Heads of QA and Plant Manufacturing Directors, this distinction matters operationally. PAT that functions as passive monitoring still generates data. It does not generate defensible quality decisions, reduce batch failure rates, or satisfy an inspector asking how a specific measurement influenced a specific batch disposition. The gap between collecting process data and using it is where PAT either delivers or doesn’t.
Key Takeaways
- PAT means building quality in, not testing it in. Process analytical technology shifts pharmaceutical manufacturing from end-product testing to real-time process control – measuring and predicting quality outcomes while the batch is still running.
- Instruments alone are not PAT. Value only materialises when real-time monitoring connects to governed, traceable quality decisions. Data that sits in a historian silo is passive monitoring wearing an active label.
- Chemometric modeling is the analytical baseline, not an advanced option. PCA, PLS, and ANN-based techniques are required to interpret multi-parameter process data and predict critical quality attributes reliably at scale.
- Regulators expect proof of understanding, not just sensor deployment. Documented process knowledge, model lifecycle management, and ALCOA+ data integrity are the inspection benchmarks not the number of PAT tools installed.
- Validated software is what makes PAT a manufacturing capability. Without it, QbD stays theoretical, CPV cannot run continuously, and every quality decision remains manually reconstructed and impossible to defend at audit.
The Cost of Catching Problems Too Late
The conventional static batch process model – fixed set-points, periodic sampling, end-product testing of the final product – rests on an assumption that rarely holds: that the process as operated resembles the process as validated.
In practice, it doesn’t. Raw material variability accumulates across suppliers and lots – moisture content, particle size, and size distribution all shift between deliveries. Equipment wears between calibration windows. Operator variability compounds across shifts. None of these drift events are individually dramatic. Collectively, they move a process outside its design space in ways that end-product testing detects only after the damage is done.
The numbers are specific. As documented in a comprehensive review of PAT tools across pharmaceutical unit operations, commercial-scale biopharmaceutical facilities report average batch failure rates of 7.6%, with individual batch losses routinely exceeding $1–2 million in material and resource costs. The average cost of a single failure investigation reached $14,000 by end of 2023 — driven almost entirely by senior QA and operations staff time.
Every one of those investigations represents a process that drifted beyond its design space without triggering an intervention. PAT’s foundational premise is proactiveness: measure the process continuously, predict where it is heading, and create the opportunity to act before a deviation becomes a rejection. For a manufacturing site running 200+ batches per year, that is not a technical ambition — it is a measurable P&L impact.

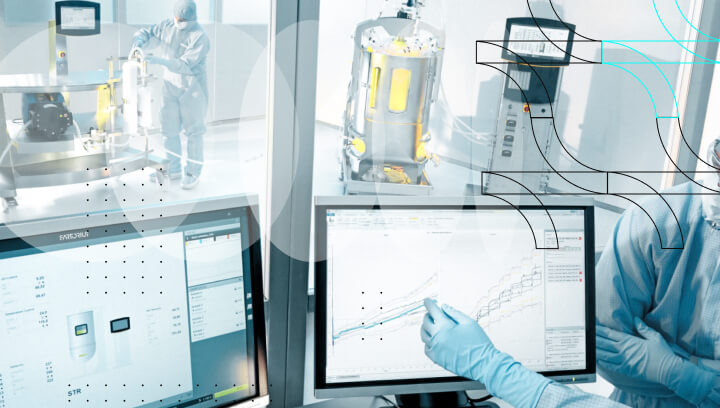

What PAT Actually Requires to Function
PAT is not a single technology. It is a system with three interdependent layers.
- Measure – analytical instruments (NIR, Raman, UV-Vis, process sensors) providing inline process control through real-time data capture on Critical Process Parameters and material attributes.
- Predict – chemometric models (PCA, PLS, ANN) performing real-time data analysis against CQAs, identifying drift, and generating quality predictions before batch completion.
- Control – validated software connecting the prediction to a documented, traceable quality decision.
Remove any layer and the system degrades. Instruments without models produce noise. Models without governance are unqualified algorithms running in a GMP environment. And without the software layer, there is no audit trail connecting measurement to decision — which means, from a regulatory perspective, there is no PAT.
Core PAT Technologies: What They Measure and Where They Deliver Value
|
Technology |
Primary application |
What it captures |
PAT value in practice |
|
Near-infrared (NIR) spectroscopy |
Solid dose blending, granulation, coating |
Blend uniformity, moisture content, API concentration |
Non-destructive testing in real time; eliminates offline HPLC wait for content uniformity and enables endpoint determination based on actual process state |
|
Raman spectroscopy |
Bioreactor monitoring, API characterisation |
Polymorphic form, metabolite concentrations |
CQA prediction mid-process in complex biologics where NIR sensitivity is insufficient |
|
UV-Vis / mid-IR / fluorescence |
Downstream chromatography, purification |
Column performance, impurity profiles |
Continuous column lifecycle assessment; detects fouling and breakthrough before product impact |
|
MVDA / chemometrics (PCA, PLS) |
All multi-parameter processes |
Patterns across hundreds of simultaneous variables |
Drift detection before any univariate alarm fires — essential for bioreactor and multi-CQA processes |
|
Design of Experiments (DoE) |
Process development, tech transfer |
CPP–CQA relationships across parameter ranges |
Scientific basis for chemometric models; makes scale-up and tech transfer defensible |
|
Process mass spectrometry |
Fermentation off-gas analysis |
CO₂, O₂, metabolic activity via spectrometry gas analysis |
Early yield prediction and feeding strategy optimisation; supports consistent product output across bioreactor runs |
A note on MVDA: ICH Q8 explicitly recognises that monitoring from a single data source is insufficient for complex manufacturing processes. Multivariate analysis is not an advanced option — it is the baseline for PAT to function in biopharmaceutical applications. A chemometric model built on 50 batches becomes more robust at 200. That compounding value only materialises if data is captured in a unified, governed system rather than scattered across historian silos and local workstations.
What Regulators Actually Expect and Where Most Sites Fall Short
The FDA’s PAT initiative, formalised through its guidance and reinforced by ICH Q8, Q9, and Q10, defines expectations that go well beyond instrument deployment. During inspections, regulators are increasingly focused on three questions that most current implementations cannot answer cleanly:
- Can you trace this quality decision back to its data? The inspection question is not “do you have a NIR probe?” It is “show me how this measurement influenced this batch disposition decision.” If the answer requires navigating disconnected systems and reconstructing a manual workflow, the implementation is not functioning as intended.
- Is your process understanding documented or just assumed? A PAT model must be traceable back to DoE-generated knowledge showing how CPPs influence CQAs — a principle detailed in Quality by Design & PAT for Dummies as foundational to defensible pharmaceutical process development. A model without that scientific basis is, from a regulatory perspective, an unvalidated algorithm in a GMP environment.
- Is model lifecycle management in place? Chemometric models degrade as raw materials, equipment, or process conditions shift. Regulators expect version-controlled models with defined monitoring criteria and formal change control. The latest edition of GAMP 5 provides the risk-based validation framework that governs this. A PAT system without GAMP 5-aligned CSV controls — audit trails, role-based access, electronic signatures — is not inspection-ready regardless of its analytical sophistication.
Software Is the Layer That Completes the System
Most PAT implementations stall at the same point. Instruments are installed. Data flows to a historian. Chemometric models are built and validated in isolation. And then the connection between measurement and quality decision remains manual — interpreted by an engineer, documented in a spreadsheet, and impossible to reconstruct cleanly during an audit.
The missing layer is not more sophisticated analytics. It is a governed data environment that connects the analytical layer to quality decisions in a way that is traceable, controlled, and inspection-ready.
The three-layer architecture only works when all layers are integrated:
- Quality by Design (QbD) defines the intent – which CQAs matter, which CPPs drive them, what the design space looks like.
- PAT executes real-time control – measuring, modelling, and predicting process behaviour against that intent.
- Validated software ensures the connection holds – capturing data with full provenance, governing model versions, and making every decision traceable from source measurement to batch disposition.
QbD without PAT stays theoretical after development. Design space is documented but not enforced during production. PAT without validated software degrades into monitoring: data is generated, models run, but decisions remain undocumented and untraceable.
Continued Process Verification cannot function continuously because the data it requires is fragmented and ungoverned.
This is the integration BGOsoftware’s data-driven pharma manufacturing platform is built to deliver applying PCA, PLS, and ANN-based multivariate techniques across process parameters simultaneously, operating entirely outside the GMP boundary to provide diagnostic intelligence without triggering change management for underlying GMP processes.
What the Software Layer Must Actually Do
|
Capability |
What its absence creates |
Governing requirement |
|
ALCOA+ data capture with full provenance |
Measurements without instrument ID, calibration status, operator, and timestamp cannot support RTRT or defensible batch disposition |
21 CFR Part 11; EU GMP Annex 11 |
|
Model version control |
No way to establish which model version produced a result at a given point in time critical during deviation investigations |
GAMP 5 CSV lifecycle management |
|
CPP-to-CQA traceability |
Quality decisions exist but cannot be reconstructed from data to conclusion in a single audit trail |
ICH Q10 process monitoring |
|
Drift monitoring and requalification triggers |
Models degrade silently as materials, equipment, or conditions shift — producing predictions based on an outdated reference state |
GAMP 5 ongoing performance verification |
|
Role-based access and electronic signatures |
No access control means no attributability ALCOA+ is structurally unachievable |
21 CFR Part 11 |
|
CPV data integration |
Continued Process Verification runs on fragmented data or not at all; Stage 3 validation lifecycle expectation goes unmet |
ICH Q10 Stage 3 process validation |
The fastest path to inspection-ready PAT is not better instruments. It is a data and software layer that can demonstrate – in real time and retrospectively – how every measurement connected to every quality decision.
Building Quality In, Not Testing It In
The intent behind the FDA’s PAT guidance has not changed: stop discovering manufacturing problems through end-product testing, and start controlling them through process understanding. What has changed is the complexity of the data environment needed to fulfill that intent at commercial scale.
Heads of QA and Plant Manufacturing who have already invested in analytical instrumentation have the sensing layer. The question now is whether the data those instruments generate is integrated, governed, and connected to quality decisions in a way that regulators can inspect and that CPV can actually consume.
BGOsoftware builds the software infrastructure that makes that connection reliable — purpose-built for pharmaceutical manufacturing, GAMP 5-aligned, and designed to operate outside the GMP boundary. So manufacturers can achieve the consistent product quality and process monitoring capability PAT was always designed to deliver, without the overhead of revalidating existing GMP systems.
Frequently Asked Questions (FAQ)
What is process analytical technology (PAT)?
Process analytical technology is an FDA-endorsed framework for designing, analyzing, and controlling pharmaceutical manufacturing through real-time measurement of critical process parameters and critical quality attributes. Rather than relying on end-product testing to confirm quality, PAT embeds measurement into the production process itself — enabling manufacturers to predict and control product quality while the batch is still running. The FDA formally introduced the framework in its 2004 PAT guidance as part of its 21st-century cGMP initiative.
What are examples of PAT tools used in pharmaceutical manufacturing?
The most widely deployed PAT tools include near-infrared (NIR) spectroscopy for blend uniformity and moisture monitoring in solid dose manufacturing; Raman spectroscopy for bioreactor metabolite tracking and API characterisation; UV-Vis and mid-IR for downstream chromatography and purification monitoring; process mass spectrometry for fermentation off-gas analysis; and multivariate data analysis (MVDA) software for chemometric modeling across all multi-parameter processes. Design of Experiments (DoE) underpins the process understanding that makes all of these tools scientifically defensible.
How does real-time monitoring work in PAT?
Real-time monitoring in PAT uses in-line, on-line, or at-line analytical instruments to capture process data continuously — without removing samples or interrupting the production process. In-line sensors measure directly within the process stream. On-line instruments divert a small portion of the stream for near-continuous analysis. The resulting data feeds into chemometric models that interpret multiple variables simultaneously, generating predictions of quality attributes in real time. This enables quality decisions — endpoint determination, deviation detection, intervention — to happen during the batch rather than after it.
What role does chemometrics play in PAT implementation?
Chemometric modeling is the analytical layer that makes real-time data actionable. A single NIR spectrum contains hundreds of data points; a bioreactor running 30 monitored variables generates thousands of signals per hour. Univariate control charts cannot reliably interpret that volume of data. Techniques like principal component analysis (PCA) and partial least squares (PLS) identify patterns across all variables simultaneously, detect process drift before any single alarm fires, and build validated mathematical relationships between process parameters and product quality attributes. Without chemometrics, PAT instrumentation produces data — not understanding.
What are the key regulatory considerations for PAT adoption?
Regulatory expectations for PAT centre on three areas. First, documented process understanding: models must be traceable back to DoE-generated knowledge linking CPPs to CQAs — not empirical curve-fitting. Second, data integrity: all process data must meet ALCOA+ principles, with a full audit trail from raw measurement to quality decision. Third, model lifecycle management: version control, drift monitoring criteria, and formal change control are required under GAMP 5. Manufacturers who meet these expectations gain regulatory flexibility in post-approval manufacturing changes; those who do not risk 483 observations regardless of their analytical sophistication.
